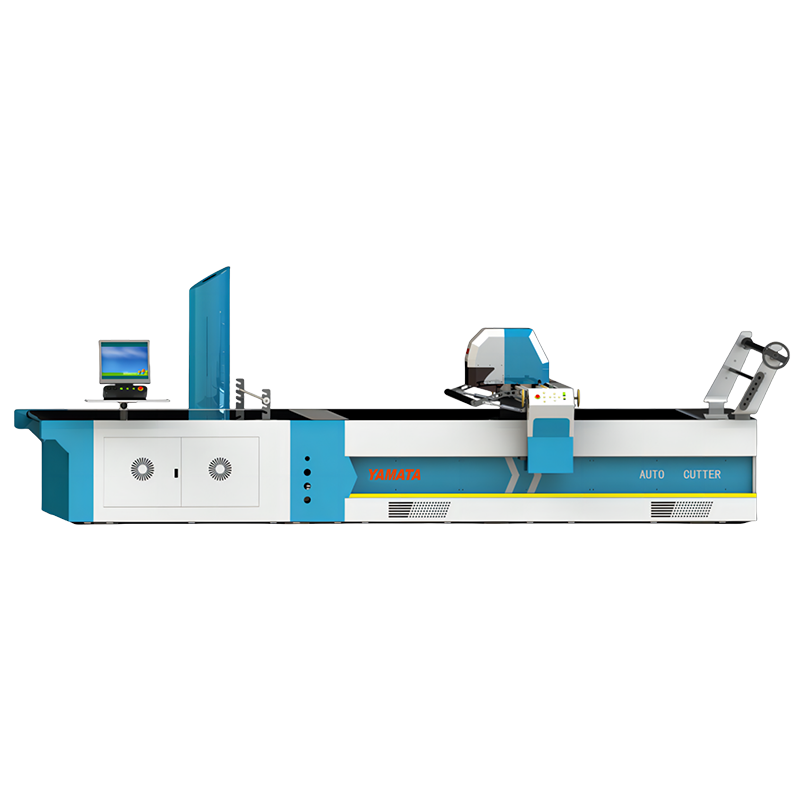

O quadro adota a tecnologia de processamento de soldagem integral, tem forte estabilidade geral e maior rigidez. The frame adopts integral welding process, which has strong overall stability and high rigidity.
A tabela de levantamento e coleta de um botão torna a manutenção e a manutenção mais convenientes.
One key lifting and picking table, maintenance is more canvenient.
O software de corte tem duas maneiras, pode ser auto-ajustado de acordo com a demanda, para atender às necessidades reais do site do cliente na maior medida.
There are two ways of equipment cuting software, which can be adjusted according to the needs to meet the acual needs of customers.
O silenciador adota uma estrutura especial projetada por nós mesmos para reduzir o ruído do ambiente de trabalho.
The mufler adopts the special structure designed by ourselves to reduce the noise of working environment.
O silenciador adota uma estrutura especial projetada por nós mesmos para reduzir o ruído do ambiente de trabalho.
The mufler adopts the special structure designed by ourselves to reduce the noise of working environment.
A cabeça da máquina adota o layout do trilho paralelo rail +L-shaped para garantir precisão de corte preciso e precisão de guia estável.
The head adopts parallel rail+L-shaped ral lavout to ensure accurate cuting accuracy and stable guide accuracy.
| Product | Swatch | Pre adsorption high | Approximately high after adsorption | Maximum number of layers (layers) | Cutting speed | Cutting low speed | Vacuum pump suction (gear) | Grinding interval |
| Pants | Cotton woven fabric | 4cm | 3.5cm | 80 | 8m/min | 6m/min | 6 | 0.5m |
| Sofa cushion | lmitation leather | 3cm | 2.5cm | 40 | 12m/min | 10m/min | 7 | 0.5m |
| Hermals | Fleece | 16cm | 8cm | 80-90 | 10m/min | 7m/min | 5 | 1m |
| T-shirt | All cotton knitted fabric | 7.5cm | 5-6cm | 90-110 | 12m/min | 9m/min | 5 | 1m |
| Pants | Cotton knitted denim(14 ounces) | 54cm | 4.5cm | 40-50 | 8m/min | 6m/min | 7 | 0.5m |
| Tops | Denim | 5cm | 4-5cm | 40-50 | 8m/min | 6m/min | 7 | 0.5m |
| CAR cushion | Sponge adhesive cloth | 10cm | 6cm | 20 | 15m/min | 12m/min | 5 | 1m |
| PU artificial leather | 2cm | 2cm | 20 | 15m/min | 15m/min | 7 | 1m | |
| Cap piece | Cotton woven fabric | 2.5cm | 2.2cm | 25 | 10m/min | 8m/min | 6 | 0.5m |
| Car airbags | Airbag | 2cm | 1.8cm | 20 | 25m/min | 20m/min | 5 | 1m |
| Shirt | Dacron | 4.5cm | 4cm | 100-110 | 12m/min | 10m/min | 6 | 1m |
| Lingerie | Elastic fabric | 1.5cm | 1cm | 30-40 | 15m/min | 12m/min | 5 | 1m |
| Swimwear | Elastic fabric | 5cm | 4cm | 80-100 | 12m/min | 10m/min | 6 | 1m |
| Down jackets | Coated fabric(non breathable,slippery) | 2.5cm | 2cm | 60-80 | 10m/min | 8m/min | 5 | 1m |
| Model | FY 17 | FY 20 | FY 23 | FY 26 | |
| Cutter head specification mm | 1.6/2.0/2.5/3.0(optional) | 1.6/2.0/2.5/3.0(optional) | 1.6/2.0/2.5/3.0(optional) | 1.6/2.0/2.5/3.0(optional) | |
| Effective clipping area mm | 2000x1700 | 2000x2000 | 2000x2300 | 2000x2600 | |
| Appearance size(HxWxL) mm | 1450x2450x5500 | 1450x2750x5500 | 1450x3050x5500 | ||
| Total weight of equipment kg | 4000 | 4300 | 4600 | 5500 | |
| Maximum clipping height mm | 70cm | 70cm | 70cm | 70cm | |
| Maximum mechanical speed mmin | 65 | 65 | 65 | 65 | |
| Maximum acceleration ms | 8-10 | 8-10 | 8-10 | 8-10 | |
| Power supply | Three-phase AC380V/50HZ/30KW | Three-phase AC380V/50HZ/30KW | Three-phase AC380V/50HZ/30KW | Three-phase AC380V/50HZ/30KW | |
| Compressed airsource | Pressure mpa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| Air flow lmin | 160 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | |
| Front servo drilling | Select match | Select match | Select match | Select match | |
| Rear servo drilling | Select match | Select match | Select match | Select match | |
| Cutter head cooung system | Select match | Select match | Select match | Select match | |
| Mobile devices | Select match | Select match | Select match | Select match | |
| Convey vacuum adsorption | Select match | Select match | Select match | Select match | |
